HK AUDIO LINEAR 5

Product Description

Características principais

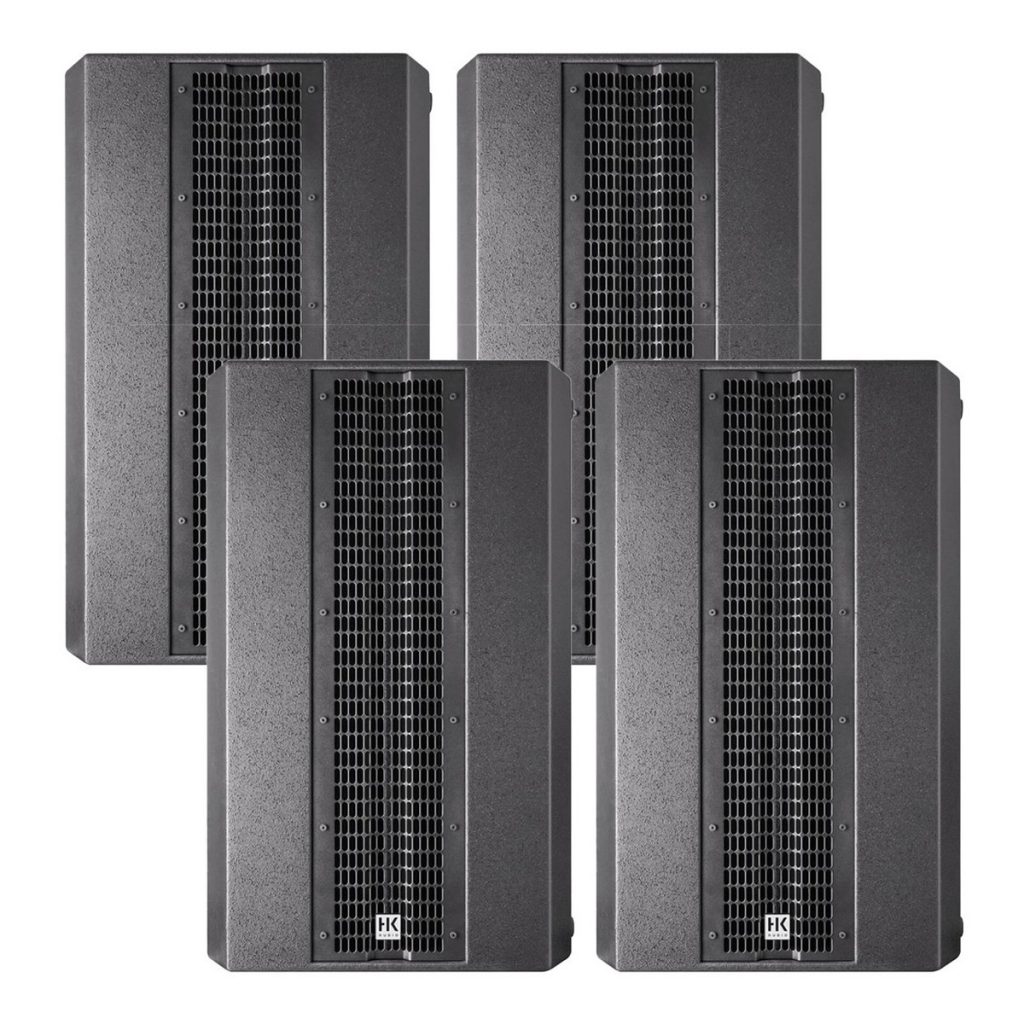

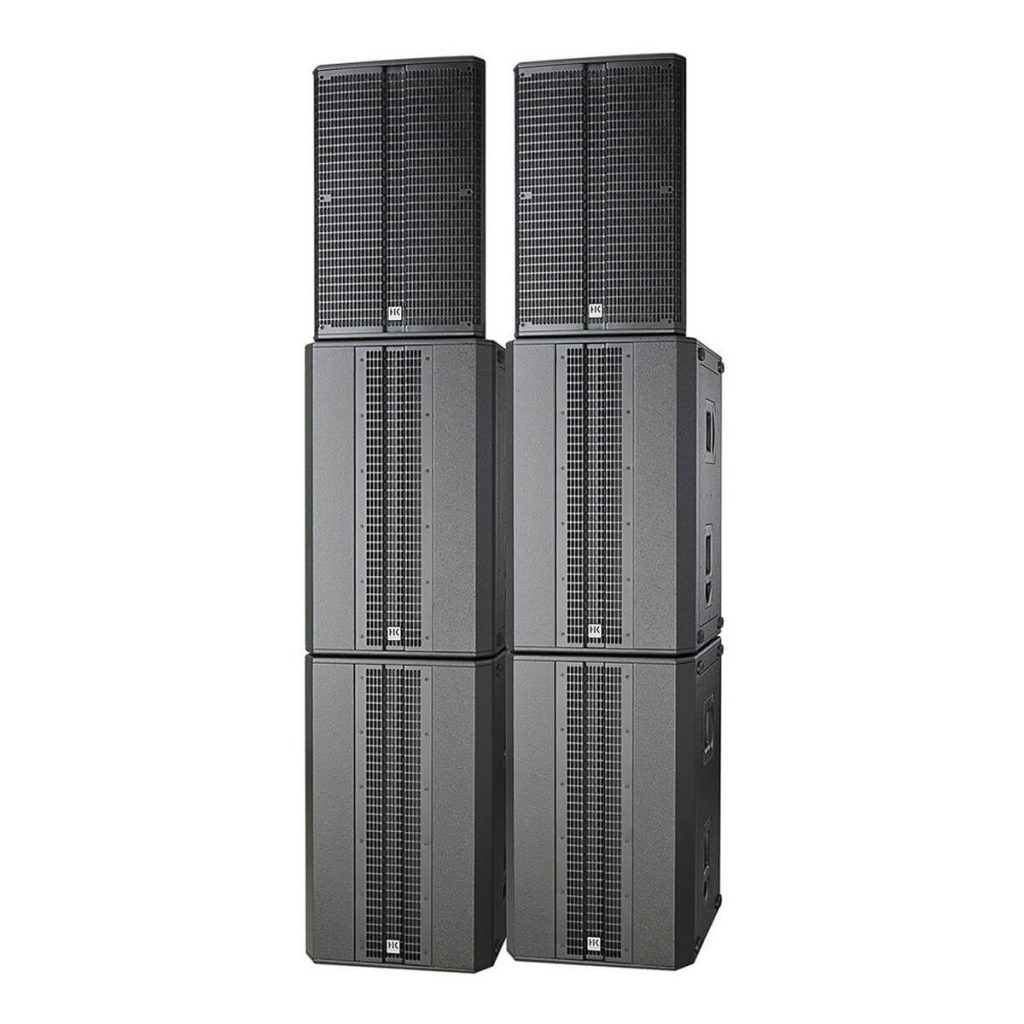

Duas colunas L5115FA, quatro subs ativos LSUB2000A
Resposta dinâmica notável para as aplicações de reforço de som mais exigentes
Uma solução plug-and-play completa para grandes audiências de até 600 pessoas



Specifications

HK Audio Linear 5 L5 115 FA 15” Active Speaker

• Maximum SPL: 128dB half space (at 10 percent THD)
  • Peak: 137dB half space (at 10 percent THD)
  • Calculated: 138dB half space
• Frequency Response:
  • +/-3dB: 57Hz – 18kHz
  • -10dB: 48Hz – 20kHz
• Power Rating: 1000W
• Amplifier: Class-D, bi-amped
• Active Protection Circuits:
  • Undervoltage protection
  • Thermoprotection
  • Short-circuit protection
  • Overcurrent protection
  • Subsonic filter, 24db/oct
  • Peak limiter
• Low/Mid Speaker: 1 x 15”
• HF Driver: 1”
• Horn: 60° – 90° (asymm) x 55° CD horn, rotatable
• Cut-off Frequency Active: 1.65kHz, 24dB/oct
• Connections:
  • 2 x XLR-1/4” combo IN
  • 2 x XLR THRU
  • 1 x XLR mix OUT
• Input Sensitivity: +4dBu at gain centreclick / L5 system level
• Sensitivity Switch: Line/Mic input A
• Equalizer: EQ switch
  • Small Venue / High Power
• Pole Mount: DuoTilt 3/7
• Rigging Points: 3 x M8
• Handles: 2 x integrated
• Enclosure: Hybrid (birch multiplex / MDF)
• Grille: 2mm metal grille backed with black acoustic foam
• Finish: Acrylic enamel, black
• Dimensions: 450mm x 710mm x 450mm (W x H x D)
• Weight: 30.7kg / 67.7lbs

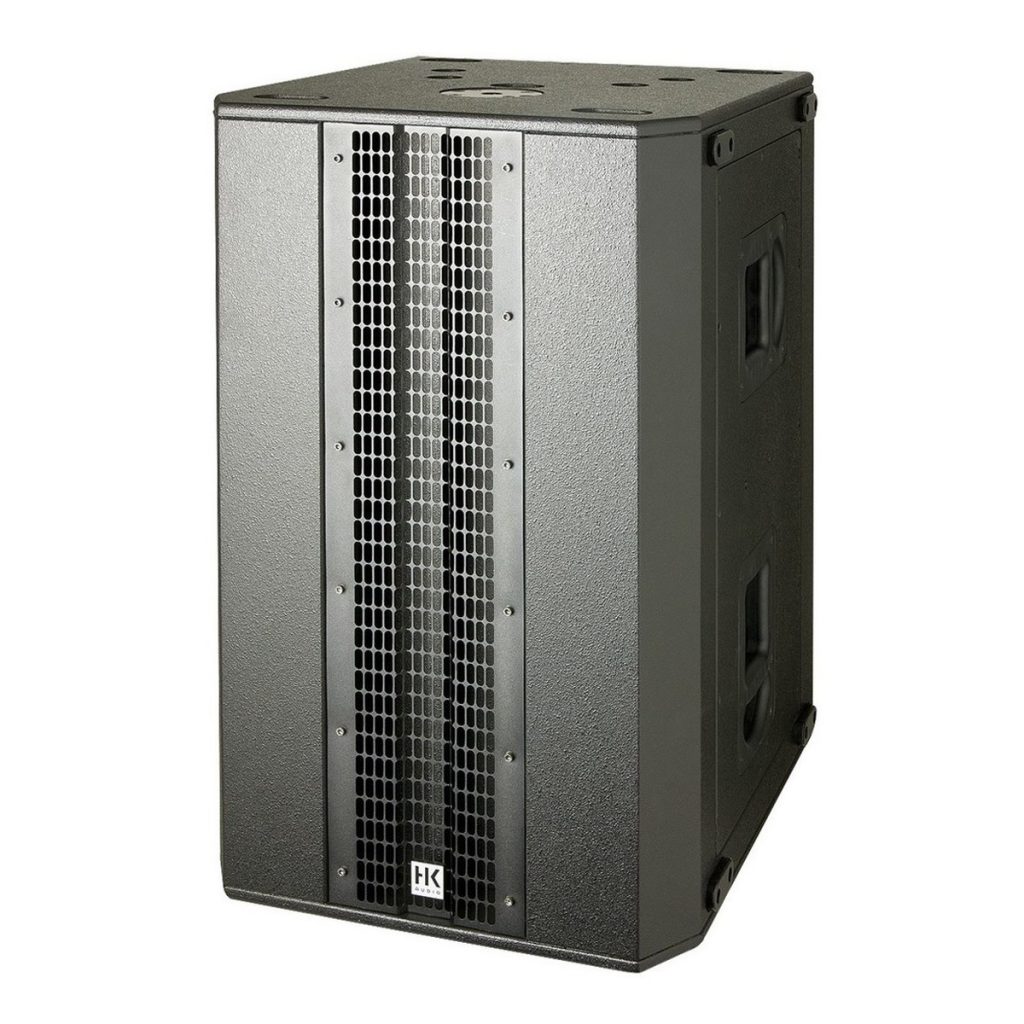

HK Audio Linear L SUB 2000 A 2 x 12” Active Subwoofer

• Maximum SPL: 132dB half space (at 10 percent THD)
  • Peak: 133dB half space (at 10 percent THD)
  • Calculated: 135dB half space
• Frequency Response:
  • +/-3dB: 49Hz – X-over
  • -10dB: 39Hz – X-over
• Power Rating: 1200W
• Amplifier: Class-D
• Active Protection Circuits:
  • Under-voltage
  • Thermal
  • Short circuit
  • Over-current
  • Subsonic filter, 24dB/oct
  • Peak limiter
• Low-Frequency Speaker: 2 x 12” (with advanced cooling technology)
• Cut-Off Frequency Active: 100/120Hz variable with 24dB/oct
• Connections:
  • 2 x XLR combo inputs (balanced)
  • 2 x XLR thru (balanced)
  • 2 x XLR mid/high out
• Input Sensitivity: +4dBu at gain centre-notched
• Pole Mount: 1 x M20 (K&M)
• Handles: 4 x HK Audio MultiGrip
• Enclosure: Birch multiplex
• Grille: 2mm metal grille backed with black acoustic foam
• Finish: Acrylic enamel, black
• Dimensions: 510mm x 810mm x 610mm (W x H x D)
• Weight: 47.5kg / 104.7lbs
